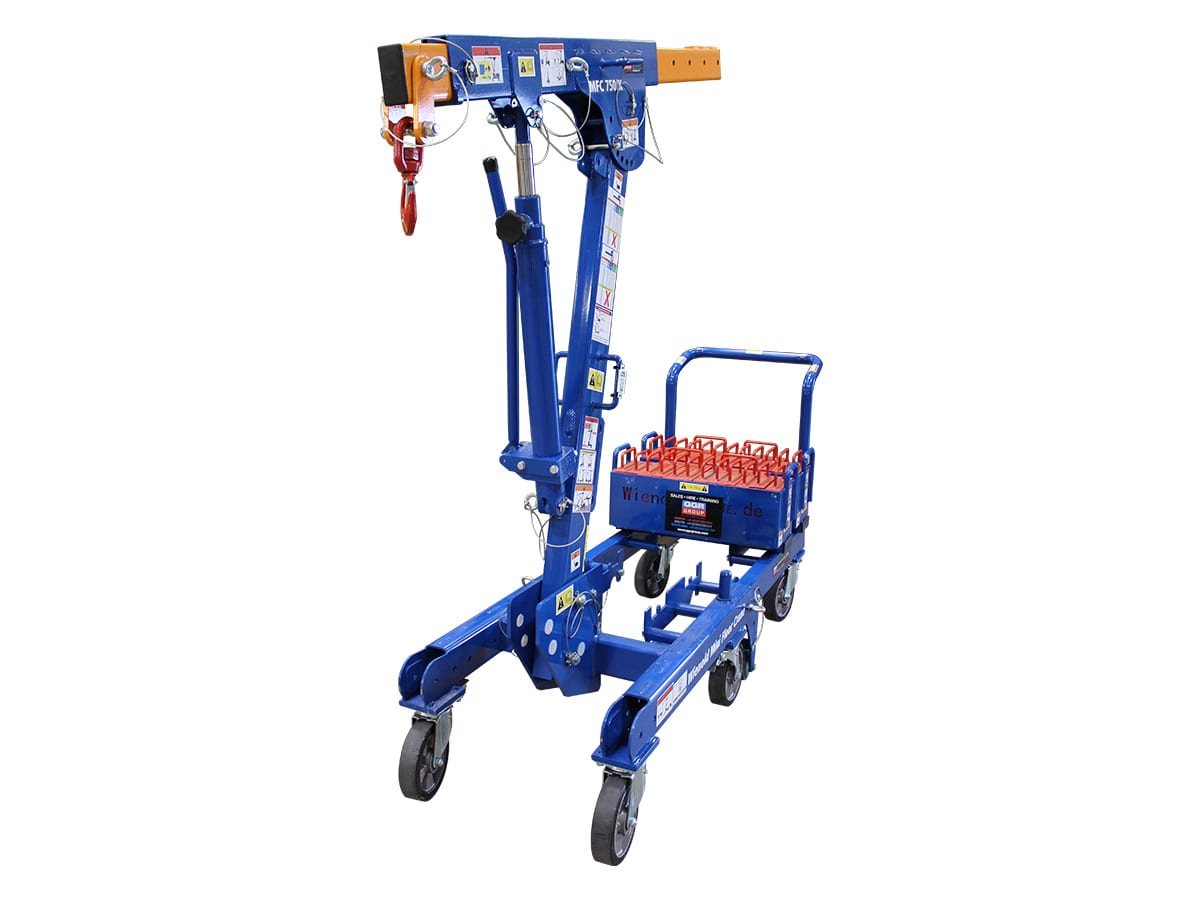

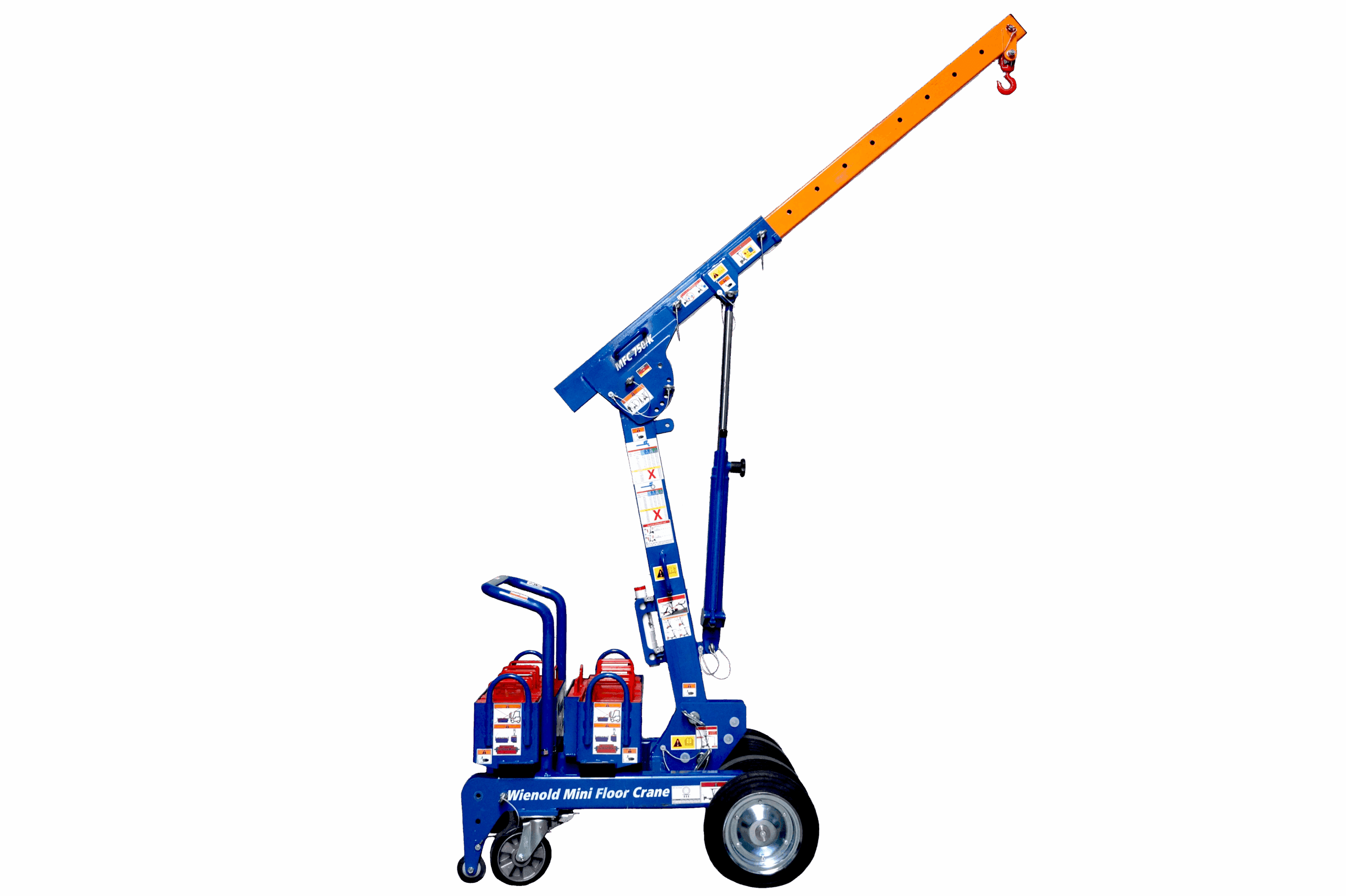

MFC 750 K/Ks lift (900 kg) with counterweights
The strongest in its class.

L’ MFC is a manual crane with a telescopic boom. It lifts loads up to 900 kg at a maximum height of 2.90 m.

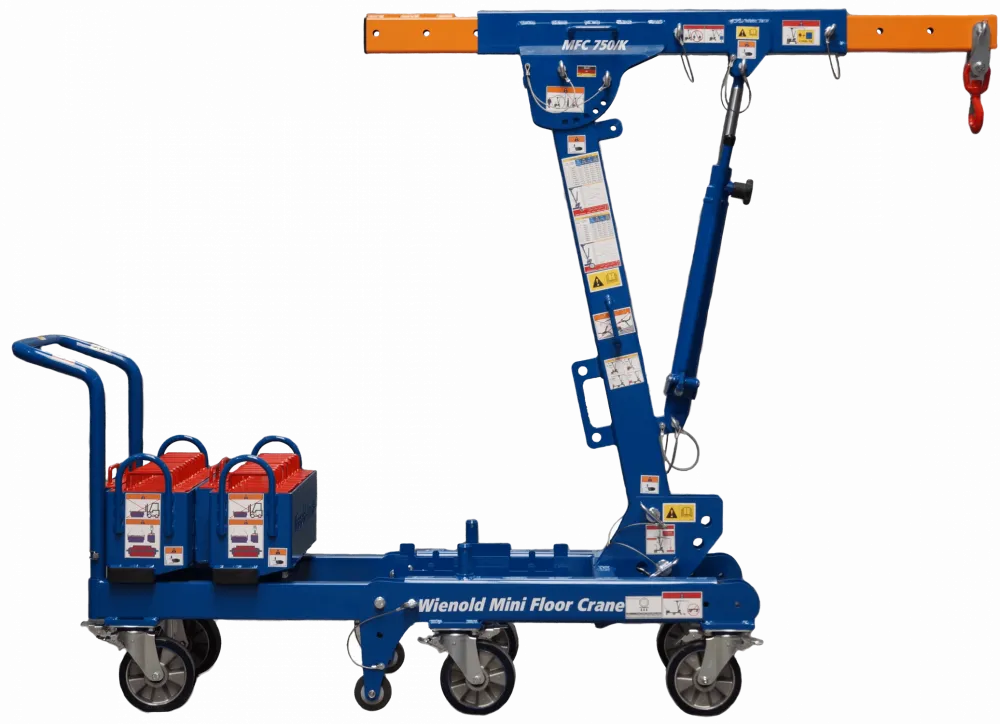

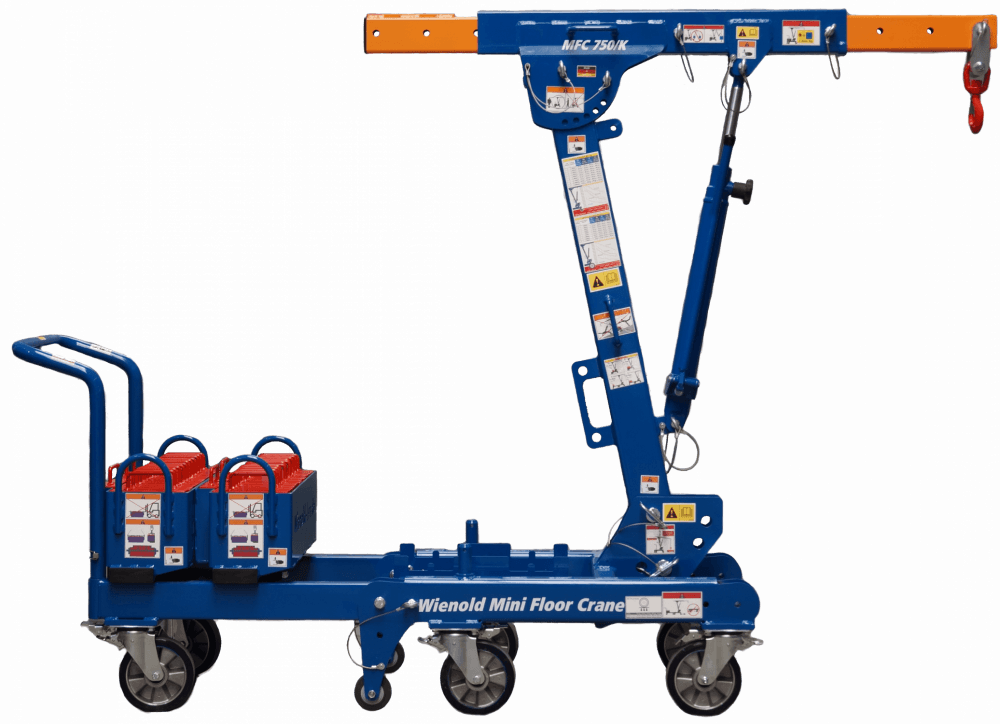

L’ MFC/K is the long version, equipped with one or two cases each with 14 counterweights. L’MFC can safely carry loads of up to 900 kg at a hook height of 2.90 m. With a fully extended crane of 1.40 m, a payload of 410 kg remains.

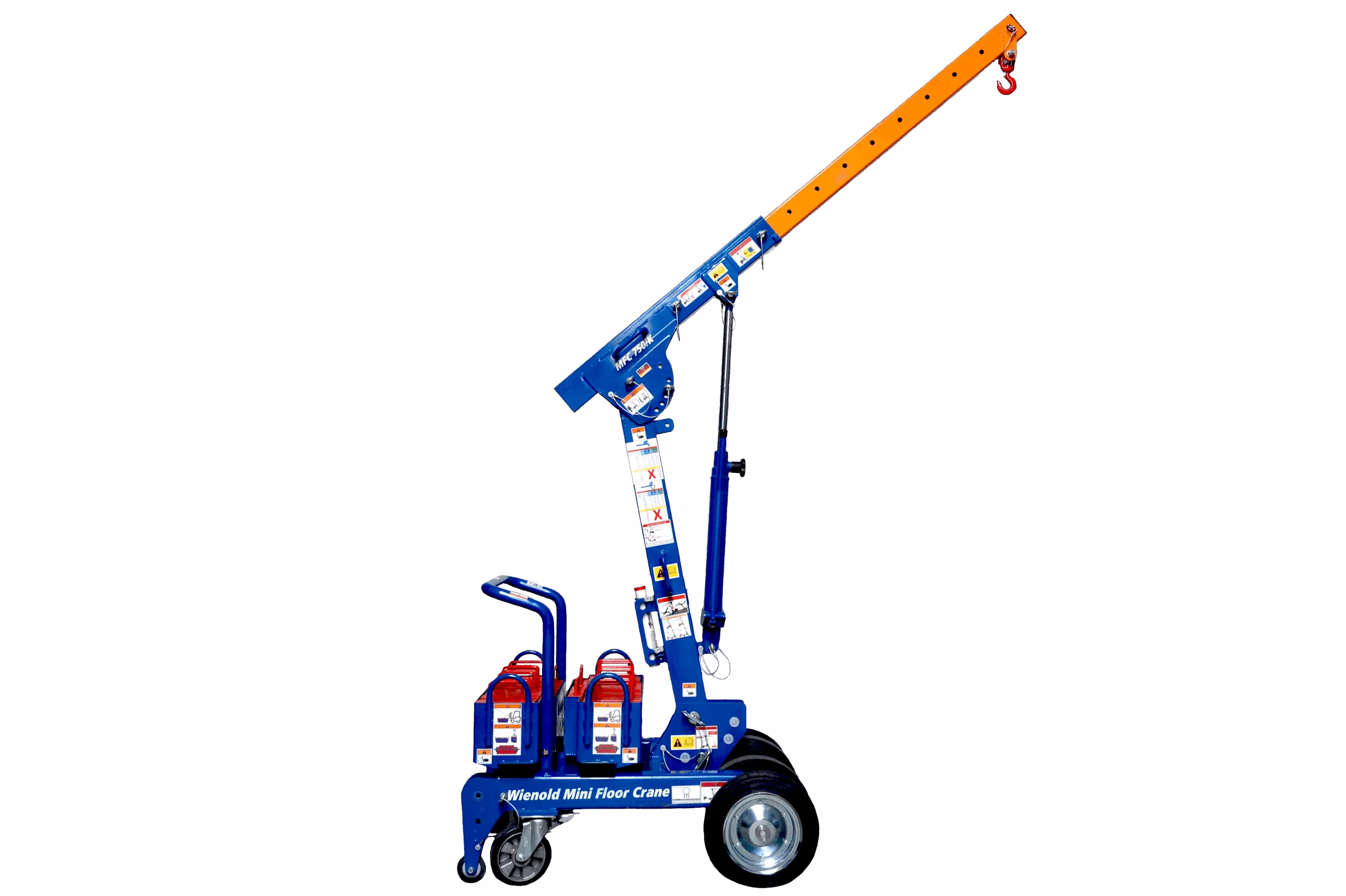

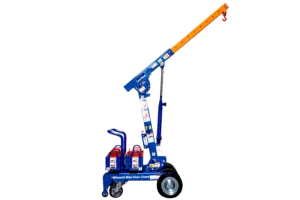

L’ MFC/Ks is the short version without frame extensions. This has the advantage of requiring only 0.65 m x 1.20 m area. Therefore theMFC/Ks performs well even in tight spaces: theMFC/Ks lifts 745 kg at a hook height of 2.90 m. With a fully extended boom of 1.40 m, it still weighs an impressive 160 kg.

Ks version

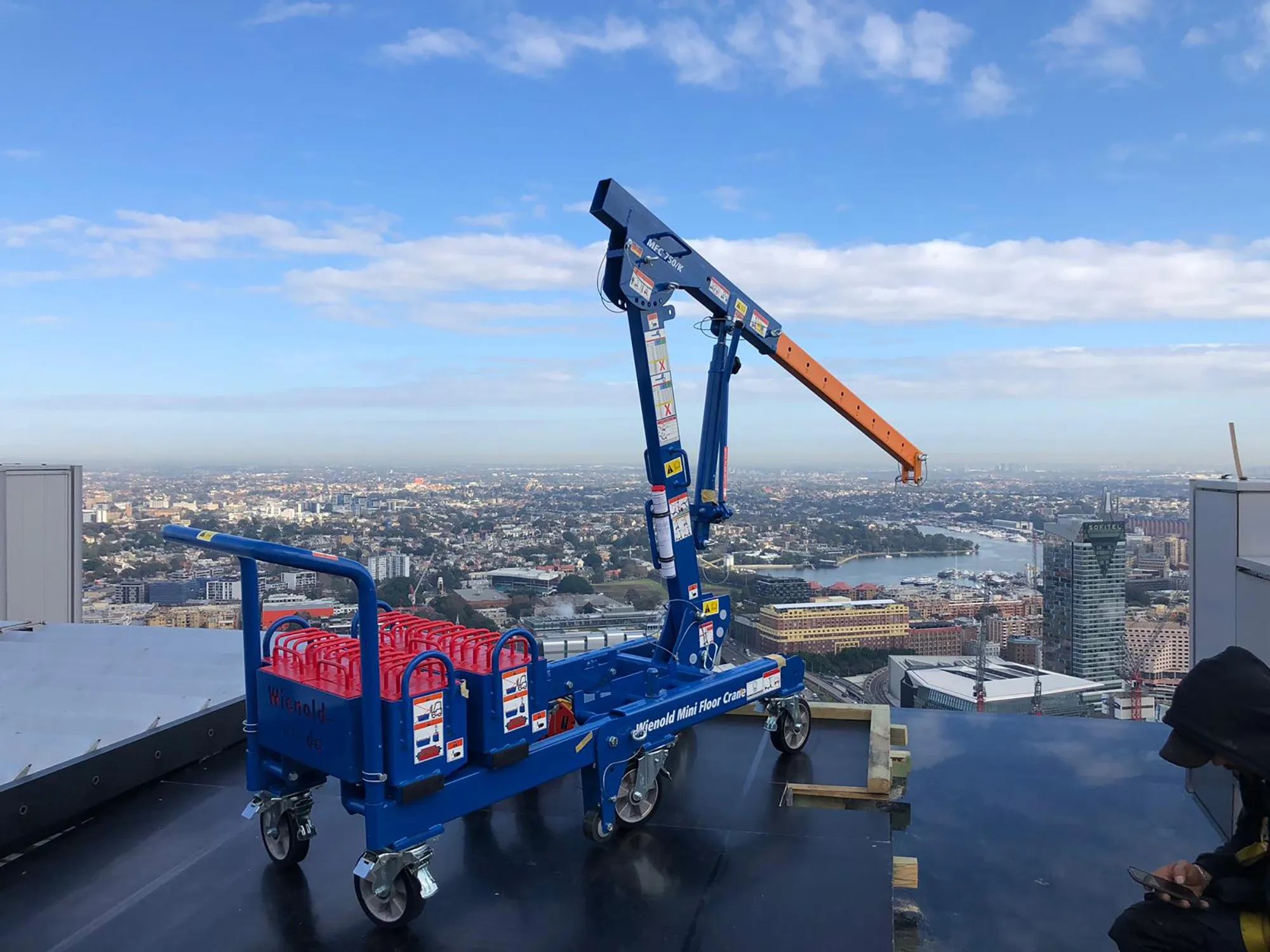

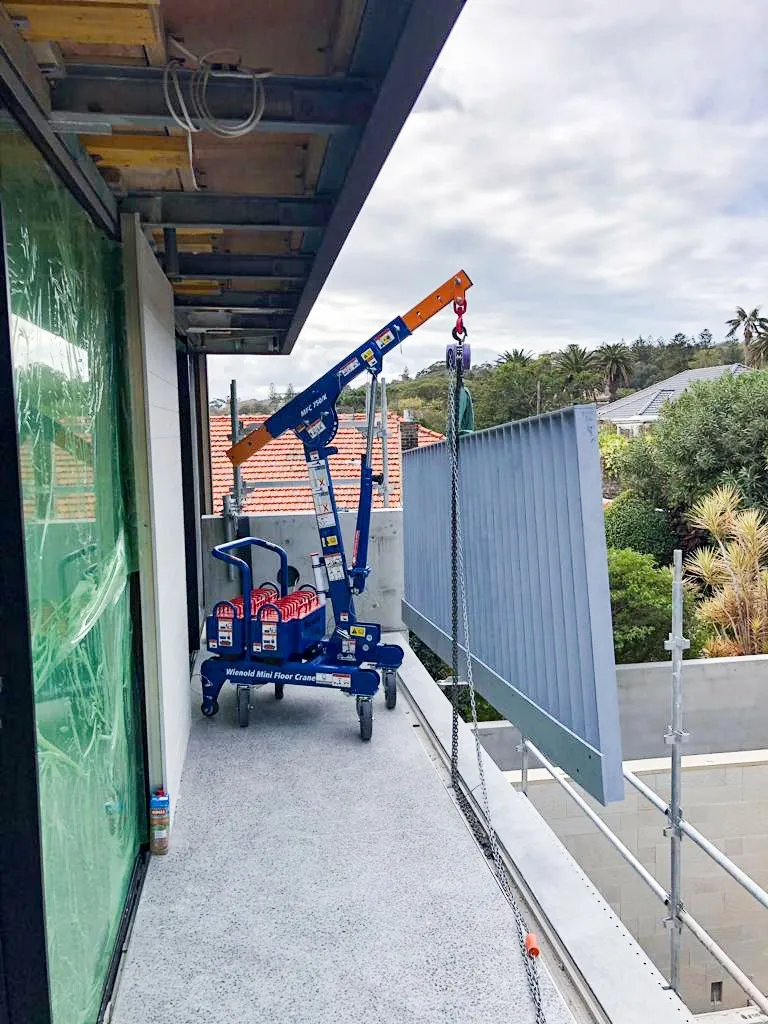

The telescopic arm, is adjustable to 8 positions, in 14 cm steps, from 0.26 m to 1.40 m front-wheel distance. The high reach, is particularly advantageous, when obstacles (such as a balcony) prevent direct access. Loads are lifted in a few strokes using a powerful lifting cylinder.

Lowering can be precisely controlled by a handy handwheel and locks automatically when released.

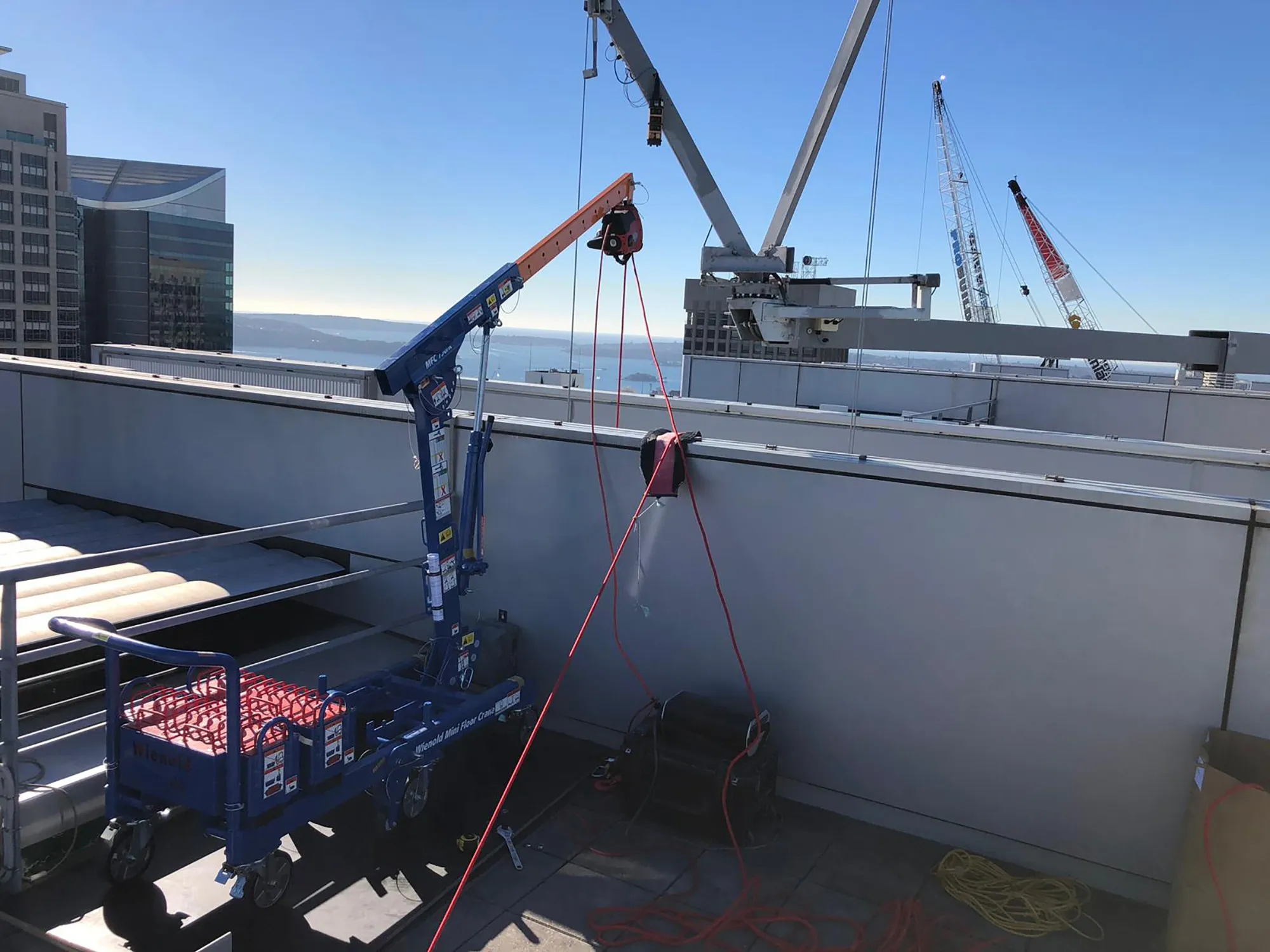

For work outdoors or on uneven surfaces, theMFC can be equipped with additional side stabilizers to ensure high stability.

The MFC is also approved for dynamic loads according to DIN 15019-2, EN 13001-1, EN 13001-2.
