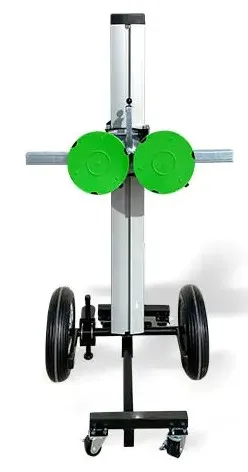

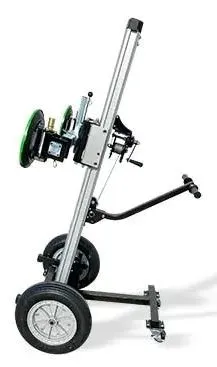

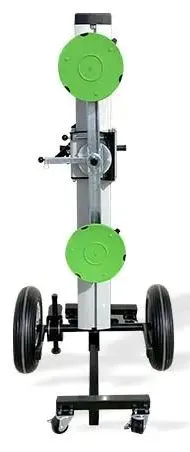

Glass Manipulator – GT2

Max Height: 140 cm Max Load Capacity: 180 kg Weight: 54 kg

The GT2 manual glass lifter is the professional machine equipped with a sturdy and compact structure to speed up the handling of glass and/or glazed frames from the total weight of 180 kg. The compact, ready-to-use design in less than 30 seconds makes it the optimal solution in all operating conditions: on the one hand, the translating support placed near the base equipped with 2 400 mm pneumatic wheels increases precision in facade work, and on the other hand, the 360-degree rotation of the suction cup support ensures the millimeter transport of very heavy loads. On the safety systems side, the manual winch with automatic brake ensures the right grip when handling, as well as the automatic stop of the glazed frame in case of malfunction. In addition, the up and down suction cup assembly lock (located on the mast) is the wild card you need to speed up positioning practices under all working conditions, even during the most intense sessions. In detail:

• Total weight of 180 kg at a maximum attainable height of 1.4 meters
• 400 mm diameter wheels for excellent grip on all types of pavements
• Can be used by one operator with max. load of 90 kg and by two operators with max. load of 180 kg
• 2 safety systems: manual winch with automatic brake and locking of the suction cup assembly on the mast
• Excellent value for money in a glass manipulator with a compact design and sturdy body
• Variable wheelbase to fit the shape of the glass. Possibility of lateral transport

In conclusion, the GT2 manual glass manipulator is an expertly balanced mix of safety, intuitiveness of use and ease of transport over smooth and rough terrain. The machine’s watchword is, in fact, versatility: quality components are designed to pander to operators’ working needs, without coming to terms in terms of reliability and robustness in the medium to long term. The manual glass lift in question proves, therefore, to be an excellent choice for professionals working in heterogeneous conditions, indoors and outdoors. IS IT POSSIBLE TO EQUIP THE GT2 LIFT WITH BATTERY-OPERATED ELECTRIC SUCTION CUPS.
